Isolated Dual RS-485 (Modbus) Industrial HAT++ for Raspberry Pi
Production
Modbus over RS-485 enables robust long-distance multi-drop communication and is a well-established, future-proof industrial communication standard.
This HAT provides two fully independent, galvanically isolated RS-485 interfaces with automatic direction detection and, as part of the BE-IIS HAT++ ecosystem, is stackable with other HATs from the portfolio for seamless system expansion and simplified system integration.
Order or request a quote
Loading offer โฆ
Quick Facts
Order Code
BE-IIS-HPP-MODBUS
BE-IIS-HPP-MODBUS
Revision
B
B
Status
Production
Production
Overlay
BE-IIS-HPP-MODBUS-I
BE-IIS-HPP-MODBUS-I
Key Features
- Dual Modbus (RS-485) HAT
- SC16IS752 dual I2C to UART controller
- up to 1.15MBit/s
- Galvanically isolated Interfaces
- Configurable 120 ฮฉ bus termination
- RSP HAT+ compliant (2024)
- Stackable HAT (BE-IIS-HAT++)
- Configurable addressing and IRQ routing
- RoHS compliant
- Quality component suppliers
Product Description
The MODBUS Industrial HAT is a Raspberry Pi HAT+ compliant interface board supporting Modbus RTU/ASCII over RS-485 in accordance with TIA/EIA-485-A.

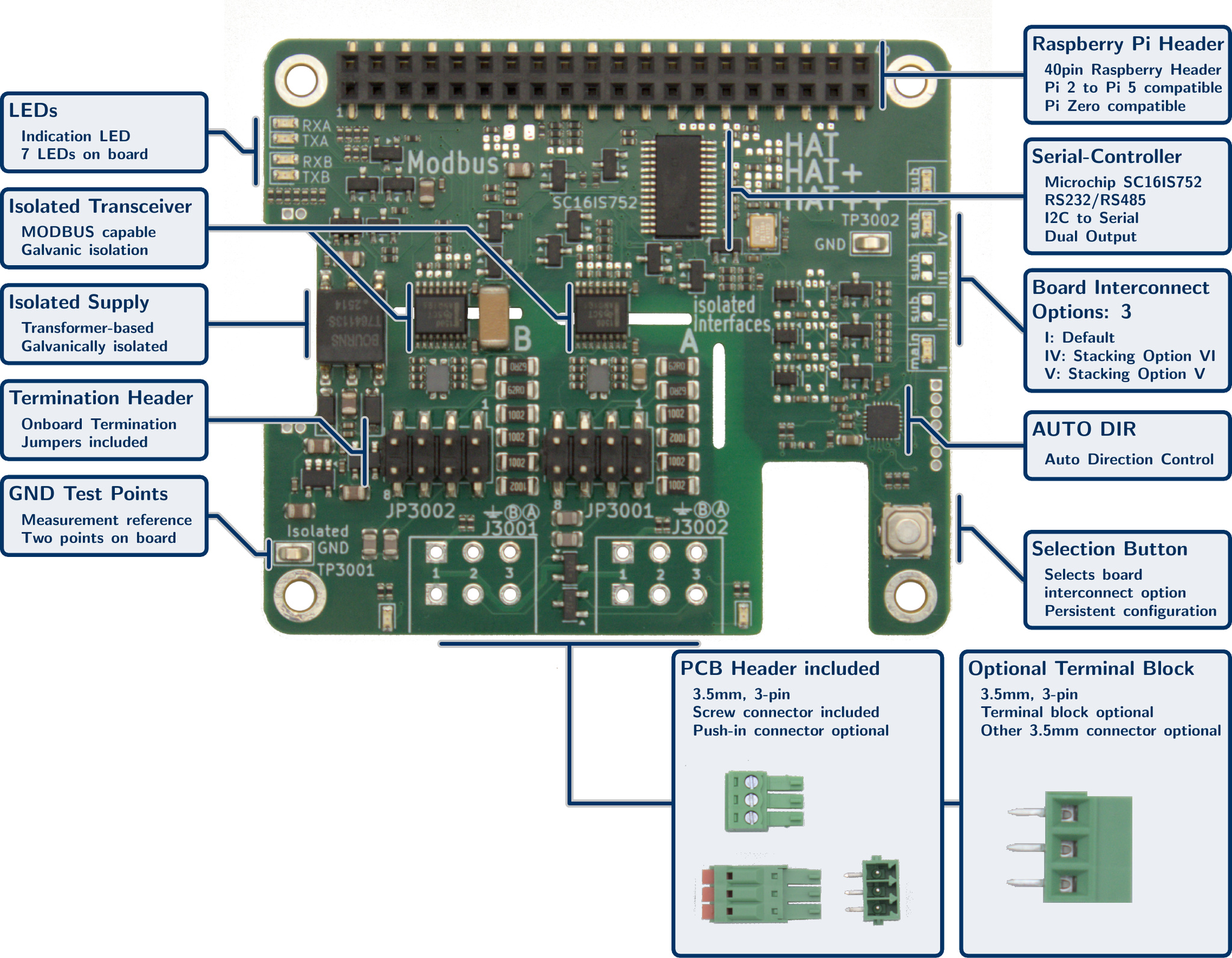

It integrates an SC16IS752 dual UART controller and an isolated ISO1500 RS-485 transceiver, providing galvanic isolation between the logic domain and the field bus interface.
Applications
- MODBUS network evaluation
- Embedded system prototyping
- Education and training
- Gateway and protocol converter development
- Industrial communication testing
Raspberry Pi Compatibility
| Model | 32-bit | 64-bit |
|---|---|---|
| Raspberry Pi 2 | โ | |
| Raspberry Pi 3 | โ | โ |
| Raspberry Pi 4 | โ | โ |
| Raspberry Pi 5 | โ | โ |
| Raspberry Pi Zero | โ | |
| Raspberry Pi Zero 2 W | โ | โ |
Compatibility depends on the installed operating system, kernel version and enabled interfaces.
HAT Compatibility
| Standard | Supported |
|---|---|
| HAT | โ |
| HAT+ | โ |
| HAT++ | โ |
