BE-IIS HAT++

Isolated CAN FD (SIC) Industrial HAT++ for Raspberry Pi

In Production

Documentation Datasheet Schematic 3D Model Layout GitHub Installer RoHS Certificate

CAN-FD with SIC supports data rates up to 8 Mbit/s over a differential two-wire bus, allowing reliable communication between multiple nodes within typical automotive and industrial network topologies.

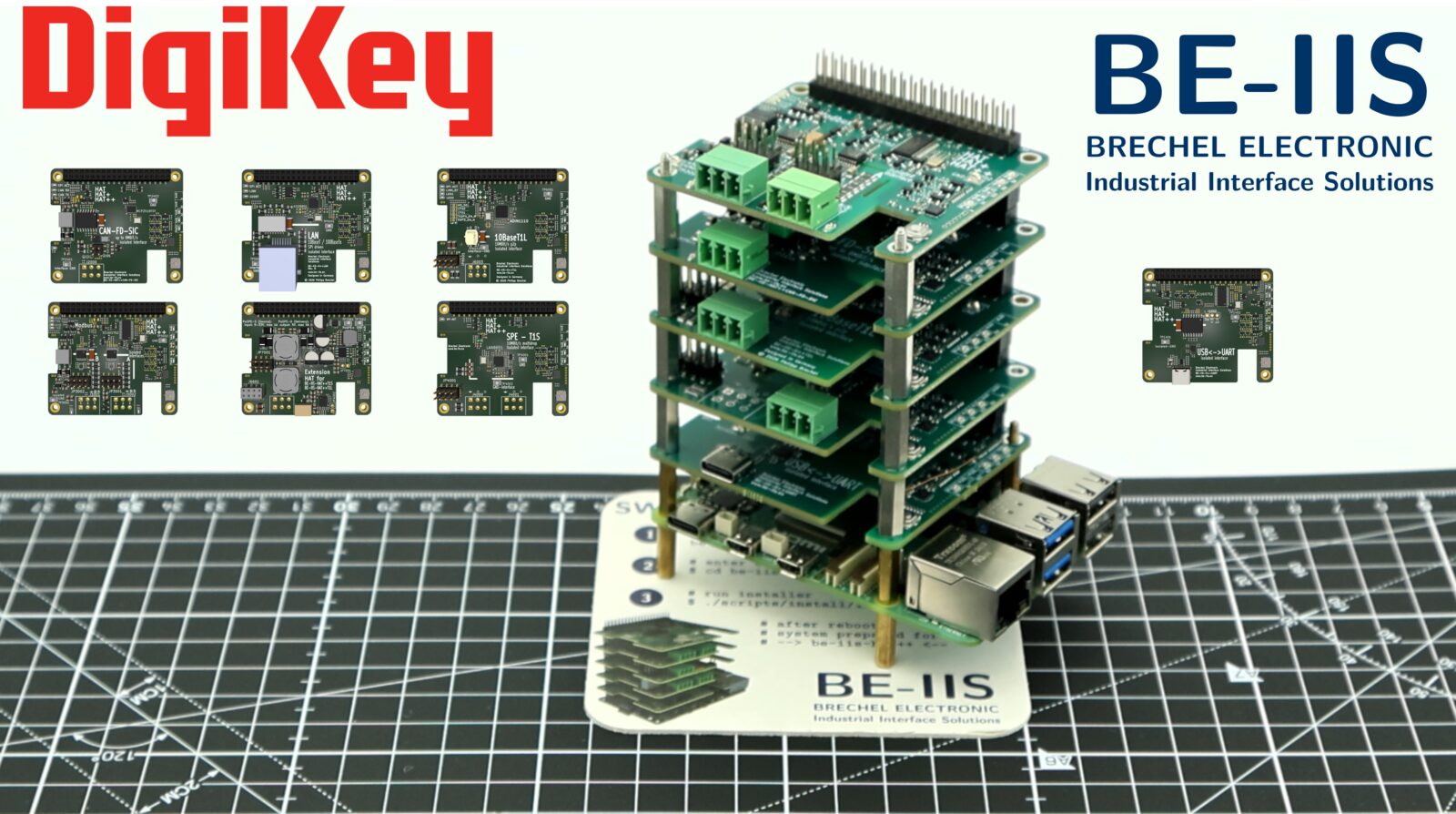

This HAT enables CAN-FD multidrop communication with Signal Improvement Capability (SIC) and, as part of the BE-IIS HAT++ ecosystem, is stackable with other HATs from the portfolio for seamless system expansion and simplified system integration.

Isolated CAN FD (SIC) Industrial HAT++ for Raspberry Pi

Order or request a quote

Loading offer …

Quick Facts

Order Code
BE-IIS-HPP-CAN

Revision
B

Status
In Production

Overlay
BE-IIS-HPP-CAN-SIC-I

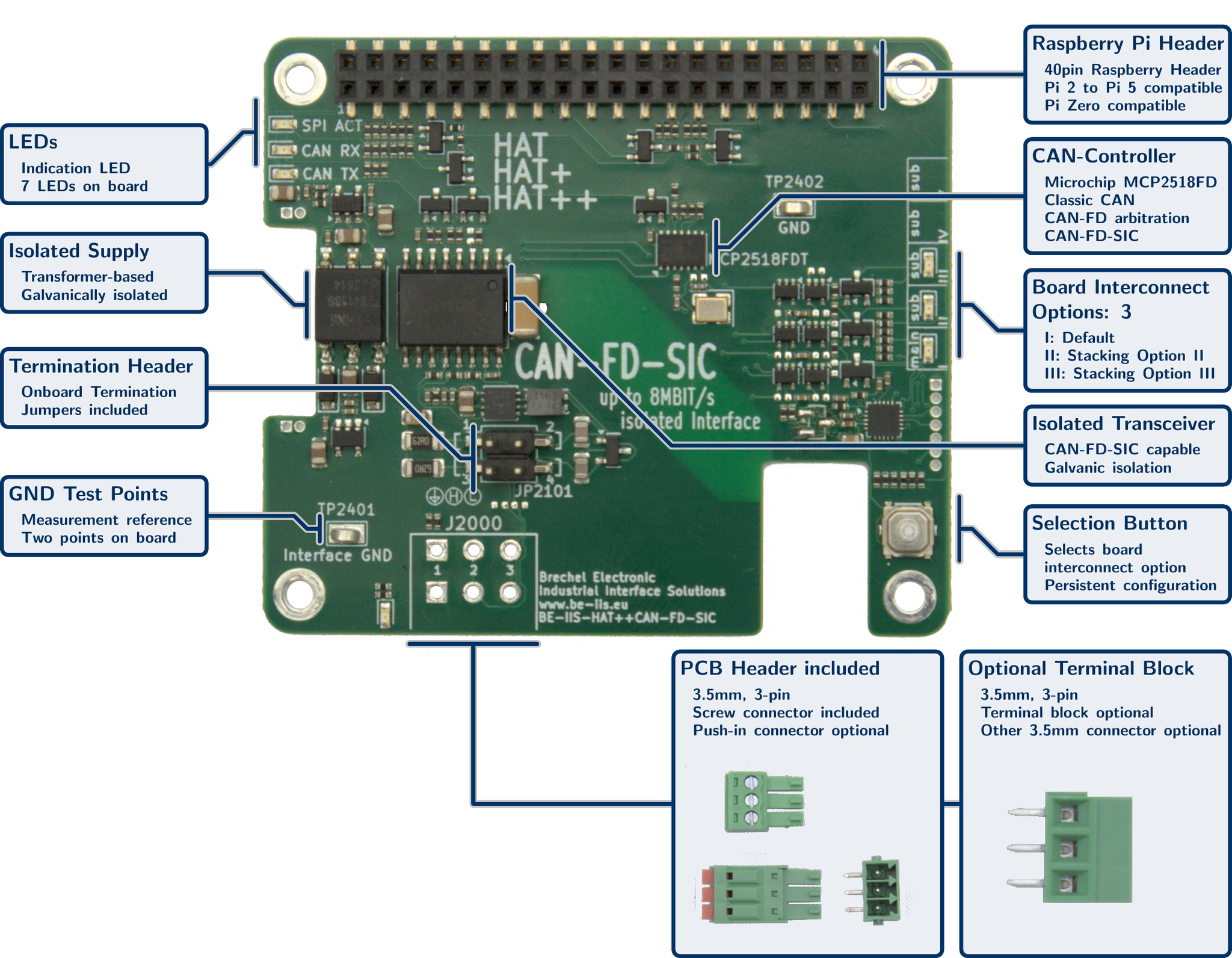

Key Features

CAN-FD with SIC, up to 8 Mbit/s
MCP2518FD CAN-FD controller
TCAN1472 CAN-FD SIC transceiver
Galvanically isolated transceiver
Configurable 120 Ω termination
RSP HAT+ compliant (2024)
Stackable HAT (BE-IIS-HAT++)
Configurable CS and IRQ routing
Two connector options
RoHS compliant
Quality component suppliers

Product Description

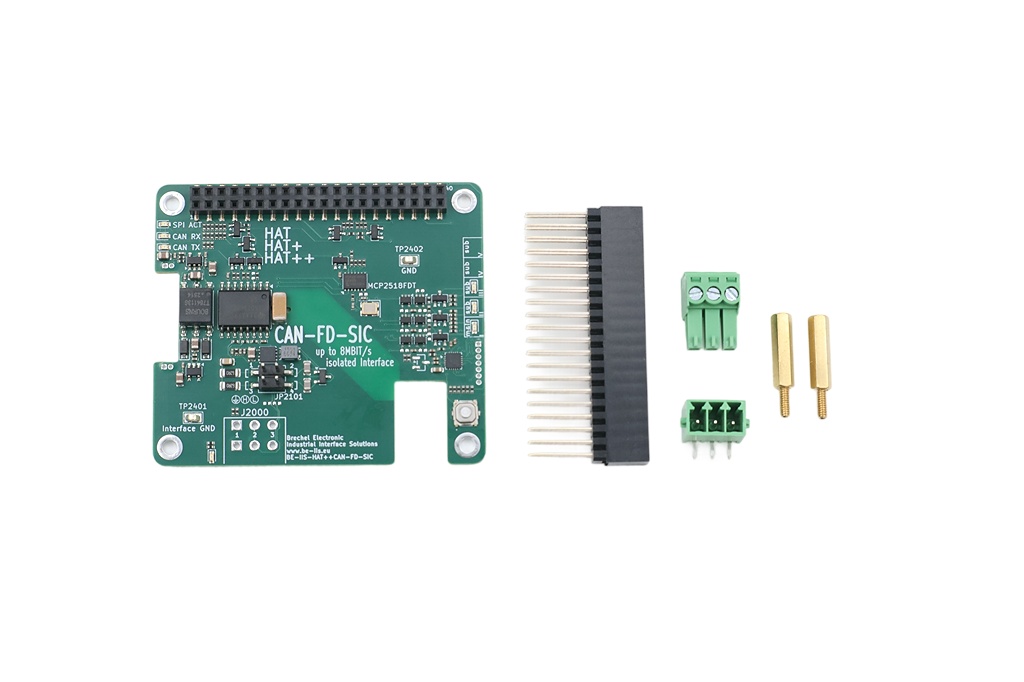

The CAN-FD Industrial HAT is a Raspberry Pi HAT+ compliant interface board supporting CAN-FD with SIC according to ISO 11898.

It integrates an MCP2518FD controller and a TCAN1472 SIC transceiver with galvanic isolation between logic and bus interface.

Applications

CAN and CAN-FD network evaluation
Technology evaluation
Prototyping
Education and laboratory use

Raspberry Pi Compatibility

Model	32-bit	64-bit
Raspberry Pi 2	✓
Raspberry Pi 3	✓	✓
Raspberry Pi 4	✓	✓
Raspberry Pi 5	✓	✓
Raspberry Pi Zero	✓
Raspberry Pi Zero 2 W	✓	✓

Compatibility depends on the installed operating system, kernel version and enabled interfaces.

HAT Compatibility

Standard	Supported
HAT	✓
HAT+	✓
HAT++	✓

Product Links

Software bring-up

How to run the installer.

Open link

GitHub

Installer and product software resources.
