Isolated USB to Dual UART Industrial HAT++ for Raspberry Pi
In Production
The UART available on the RSP 40-pin header enables direct serial communication and provides a reliable debug interface if other communication interfaces fail.

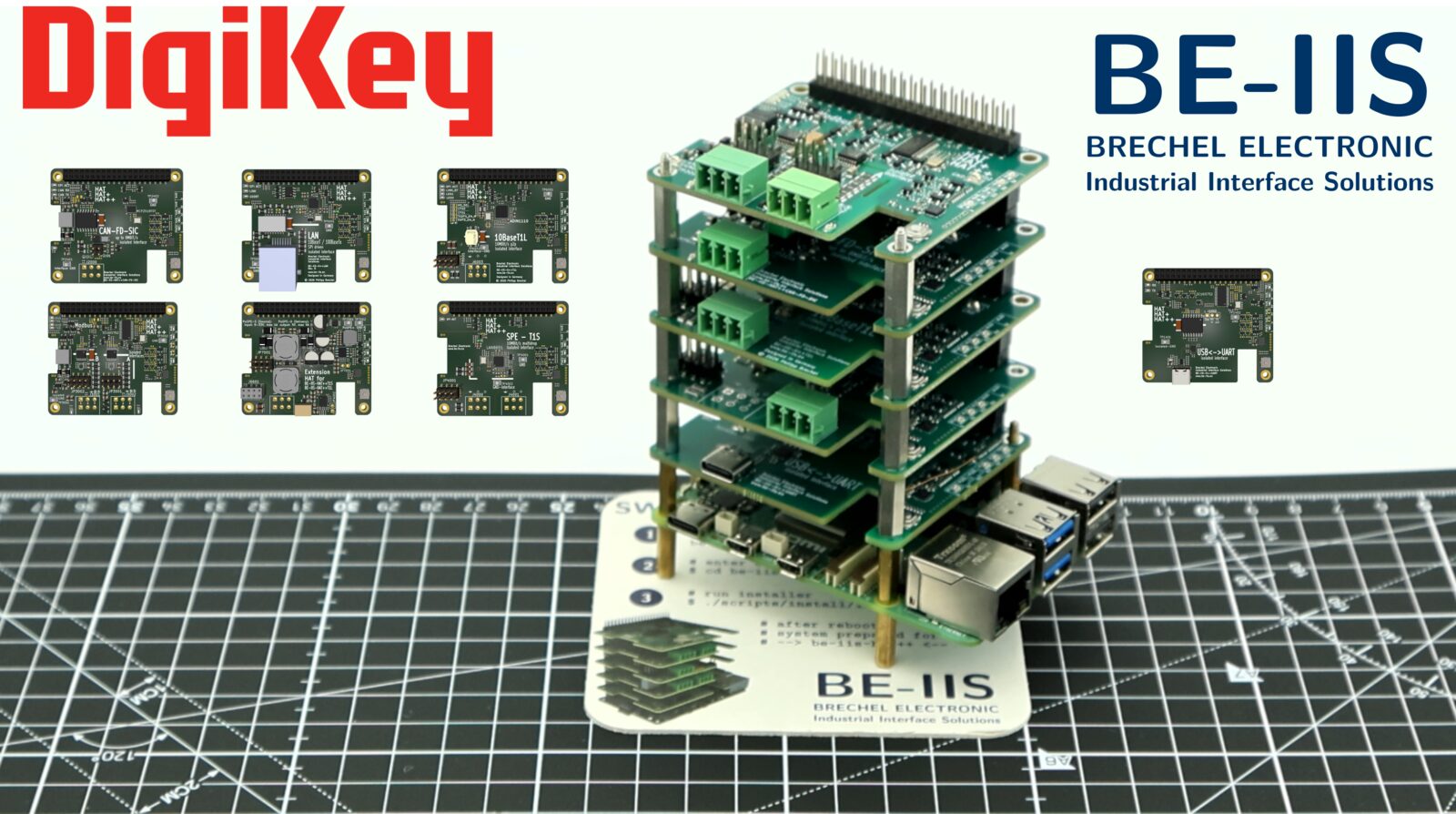

This HAT provides a galvanically isolated FTDI-based UART-to-USB interface for robust communication and protection against ground potential differences and noise coupling. As part of the BE-IIS HAT++ ecosystem, it is stackable with other HATs from the portfolio for seamless system expansion and simplified system integration.
Order or request a quote
Loading offer …
Quick Facts
Order Code
BE-IIS-HPP-UART
BE-IIS-HPP-UART
Revision
B
B
Status
In Production
In Production
Overlay
BE-IIS-HPP-UART-I
BE-IIS-HPP-UART-I
Key Features
- FT234X USB-to-UART bridge
- Integrated ESD protection
- Galvanic isolation
- TX/RX activity LEDs
- Pi UART support (Instance VI)
- I2C-UART support (Instances I, IV, V)
- Stackable HAT++ design
- RSP HAT+ compliant (2024)
- Stackable HAT (BE-IIS-HAT++)
- Configurable addressing and IRQ routing
- RoHS compliant
Product Description
The UART Industrial HAT is a Raspberry Pi HAT+ compliant board providing reliable UART access for debugging, service, or additional USB-to-UART interfaces.

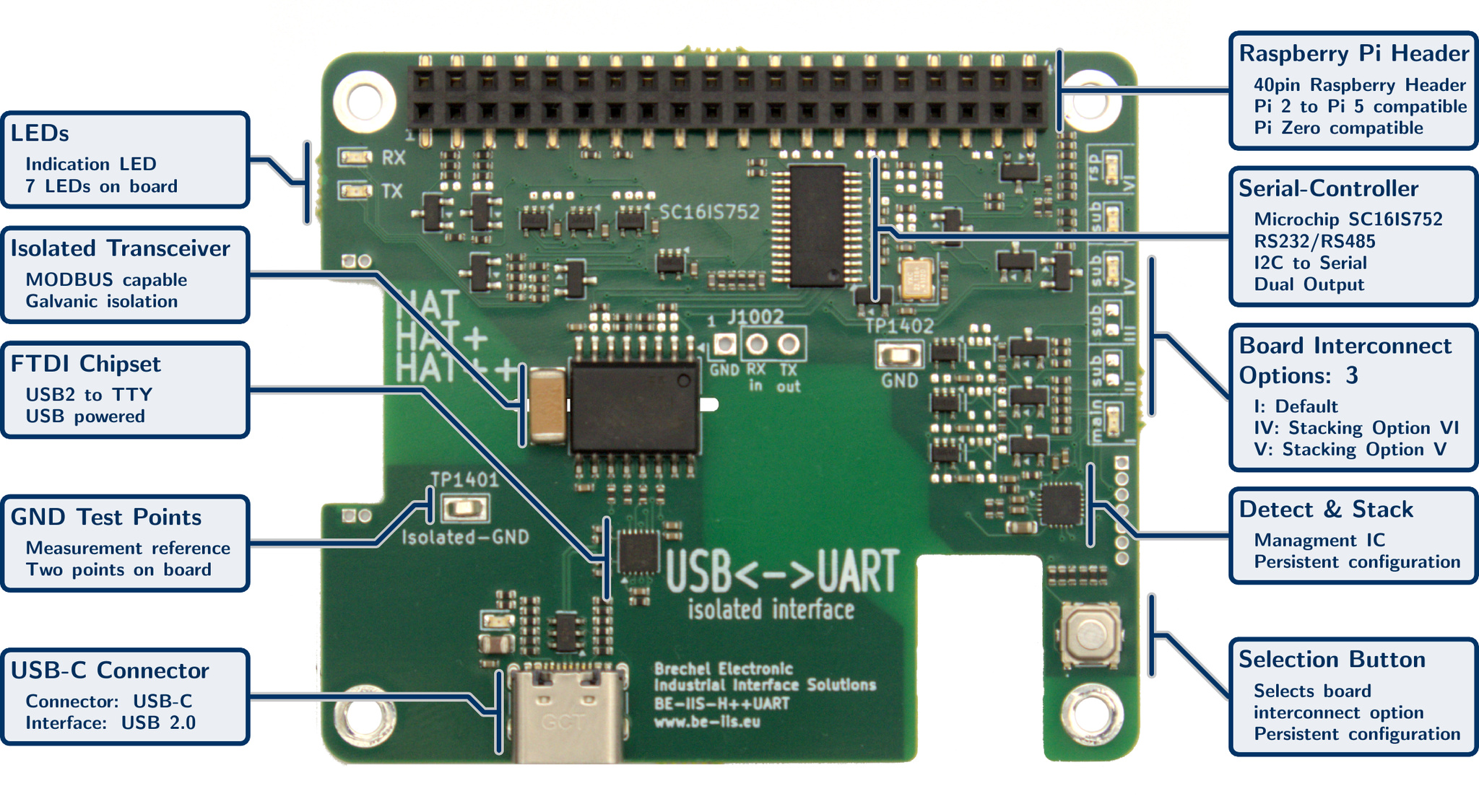

It integrates an SC16IS752 dual UART controller and an isolated UART interface with galvanic isolation between the host system and the external interface. In fallback scenarios, the native Raspberry Pi UART can also be used.
Applications
- UART debugging and service interfaces
- Sevelopment and prototyping
- Education and training environments
- Protocol gateway and converter design
- Industrial communication evaluation and testing
Raspberry Pi Compatibility
| Model | 32-bit | 64-bit |
|---|---|---|
| Raspberry Pi 2 | ✓ | |
| Raspberry Pi 3 | ✓ | ✓ |
| Raspberry Pi 4 | ✓ | ✓ |
| Raspberry Pi 5 | ✓ | ✓ |
| Raspberry Pi Zero | ✓ | |
| Raspberry Pi Zero 2 W | ✓ | ✓ |
Compatibility depends on the installed operating system, kernel version and enabled interfaces.
HAT Compatibility
| Standard | Supported |
|---|---|
| HAT | ✓ |
| HAT+ | ✓ |
| HAT++ | ✓ |
