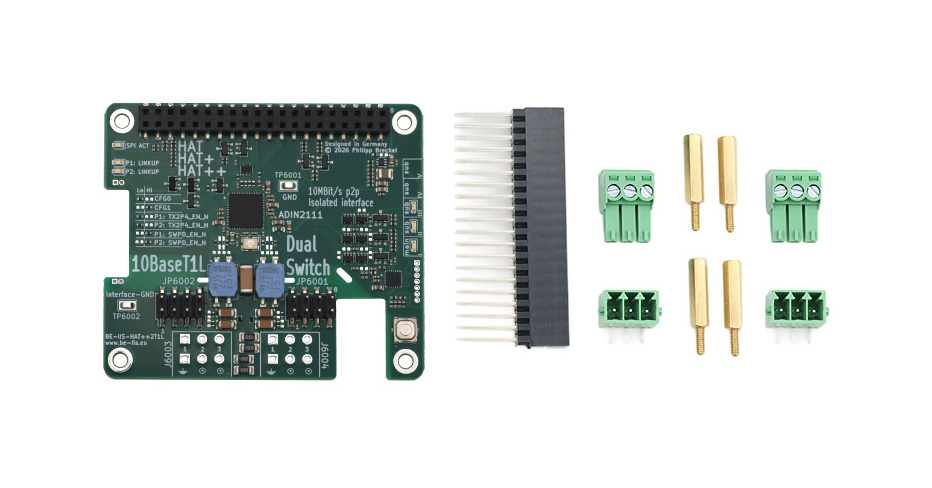

Isolated 10BASE-T1L Industrial Ethernet HAT++ for Raspberry Pi
The 10BASE-T1L Industrial Ethernet HAT is a Raspberry Pi HAT+ compliant Single Pair Ethernet interface board in accordance with IEEE 802.3cg.
View ProductBE-IIS HAT++
Isolated 10BASE-T1L Industrial Ethernet HAT++ Switch for Raspberry Pi
Production
10BASE-T1L (IEEE 802.3cg) enables 10 Mbit/s Ethernet communication over a single twisted pair for long-reach point-to-point links.
This HAT enables 10BASE-T1L communication based on the Analog Devices ADIN2111 dual Ethernet MAC-PHY and, as part of the BE-IIS HAT++ ecosystem, is stackable with other HATs from the portfolio for seamless system expansion and simplified system integration.
Order or request a quote
Loading offer ā¦
Quick Facts
Order Code
BE-IIS-HPP-2T1L
BE-IIS-HPP-2T1L
Revision
A
A
Status
Production
Production
Overlay
BE-IIS-HPP-2T1L-I
BE-IIS-HPP-2T1L-I
Key Features
- IEEE 802.3cg-compliant 10BASE-T1L Ethernet
- Dual ADIN2111 2-port 10BASE-T1L Ethernet switches
- Four 10BASE-T1L ports with integrated switch fabric
- Galvanically separated MDI
- Raspberry Pi HAT+ compliant (2024)
- Stackable HAT (BE-IIS-HAT++)
- Configurable CS and IRQ routing
- RoHS compliant
- Quality component suppliers
Product Description
The 10BASE-T1L Industrial Ethernet HAT is a Raspberry Pi HAT+ compliant Single Pair Ethernet interface board designed in accordance with IEEE 802.3cg.

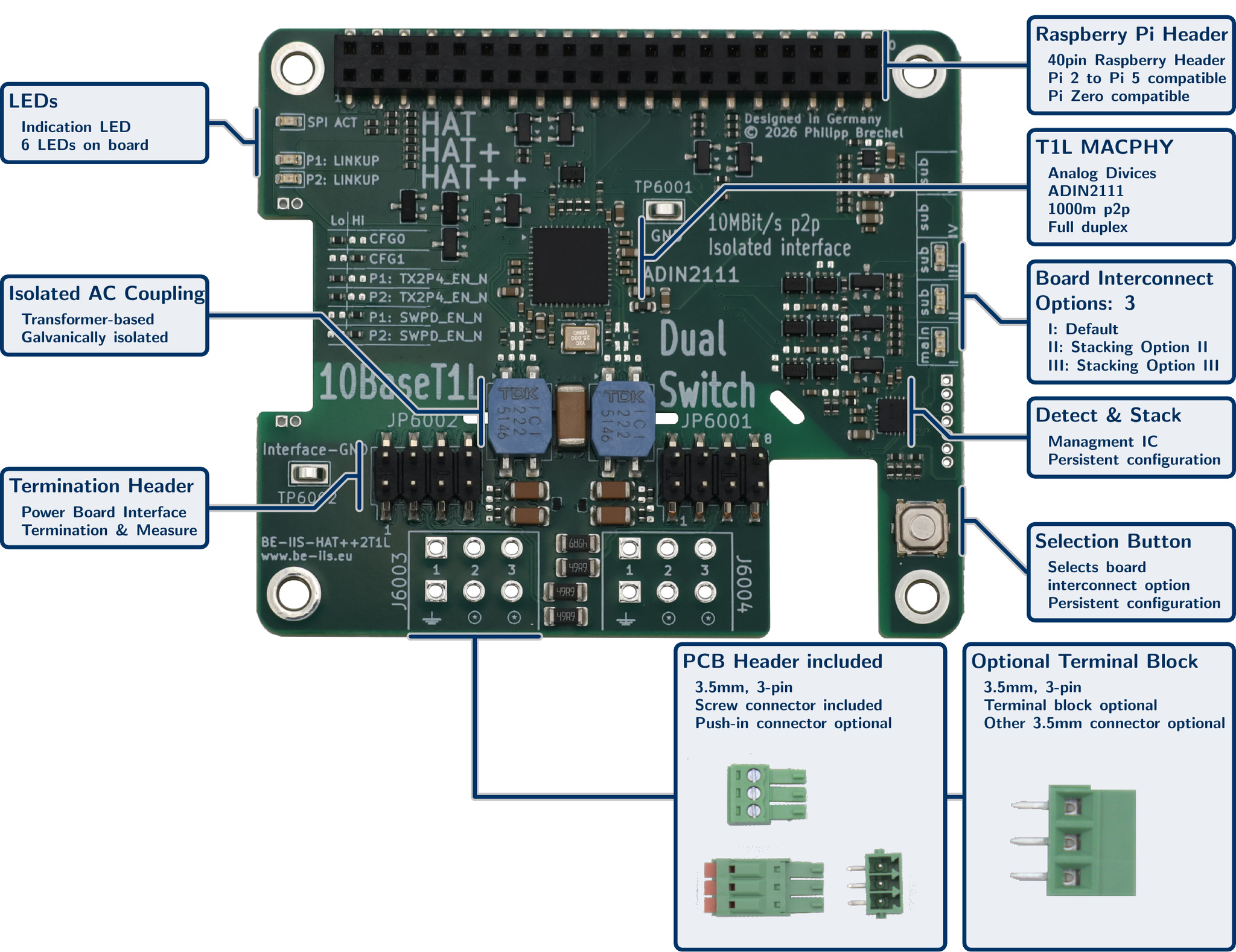

It integrates two ADIN2111 10BASE-T1L Ethernet switch MAC-PHY controllers, providing four 10BASE-T1L field ports. Each ADIN2111 includes an integrated two-port switch fabric, enabling hardware forwarding within its respective port pair without involving the Raspberry Pi.
The MDI field interfaces are galvanically isolated from the Raspberry Pi logic side, making the board suitable for robust industrial Ethernet installations.
Applications
- Technology evaluation
- Industrial network evaluation
- Prototyping
- Education and laboratory use
- Long-reach Ethernet node evaluation
Raspberry Pi Compatibility
| Model | 32-bit | 64-bit |
|---|---|---|
| Raspberry Pi 2 | ā | |
| Raspberry Pi 3 | ā | ā |
| Raspberry Pi 4 | ā | ā |
| Raspberry Pi 5 | ā | ā |
| Raspberry Pi Zero | ā | |
| Raspberry Pi Zero 2 W | ā | ā |
Compatibility depends on the installed operating system, kernel version and enabled interfaces.
HAT Compatibility
| Standard | Supported |
|---|---|
| HAT | ā |
| HAT+ | ā |
| HAT++ | ā |
