GMSL2 Serializer Camera Adapter Board

In development

Documentation Datasheet Schematic 3D Model Layout GitHub Installer RoHS Certificate

GMSL2 enables high-speed camera links over a single automotive coaxial cable, allowing image sensors to be placed remotely from the processing unit.

The BE-IIS-GMSL-SER is a camera-side serializer board that converts one CSI-2 camera interface into one GMSL2 coaxial link.

Order or request a quote

Loading offer …

Quick Facts

Order Code
BE-IIS-GMSL-SER

Revision
A

Status
In development

Overlay
BE-IIS-GMSL-SER-A

Key Features

Single CSI-2 camera input

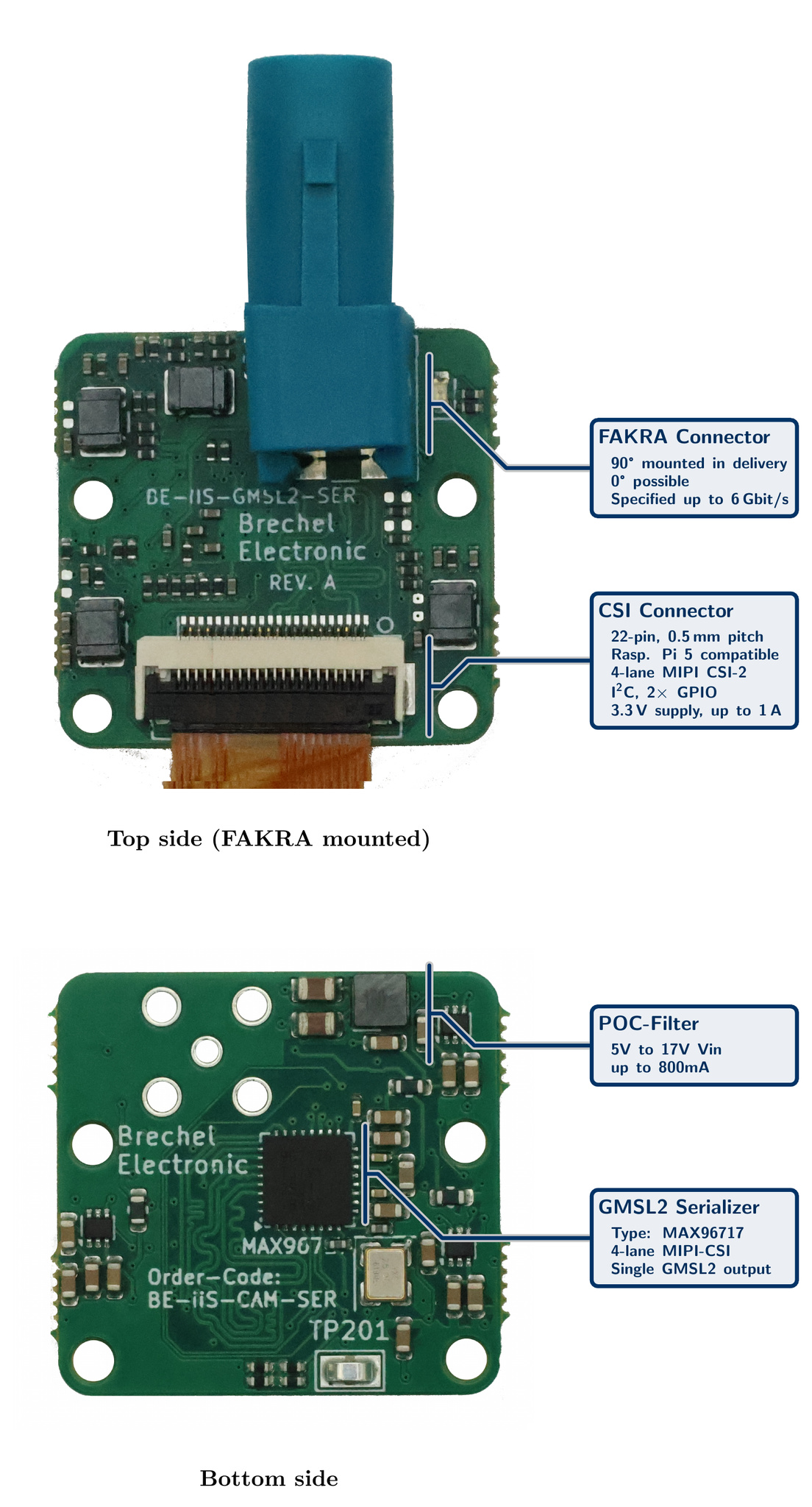

MAX96717GTJ/VY+T GMSL2 serializer
22-pin, 0.5mm-pitch FFC/FPC connector
Compatible with Raspberry Pi 5 camera connectors
Up to four CSI-2 data lanes
I2C, camera reset, and camera-enable routing
GMSL2 coaxial output via FAKRA connector
PoC input filter and protection
90 FAKRA connector fitted; 0 version available
RoHS compliant

Product Description

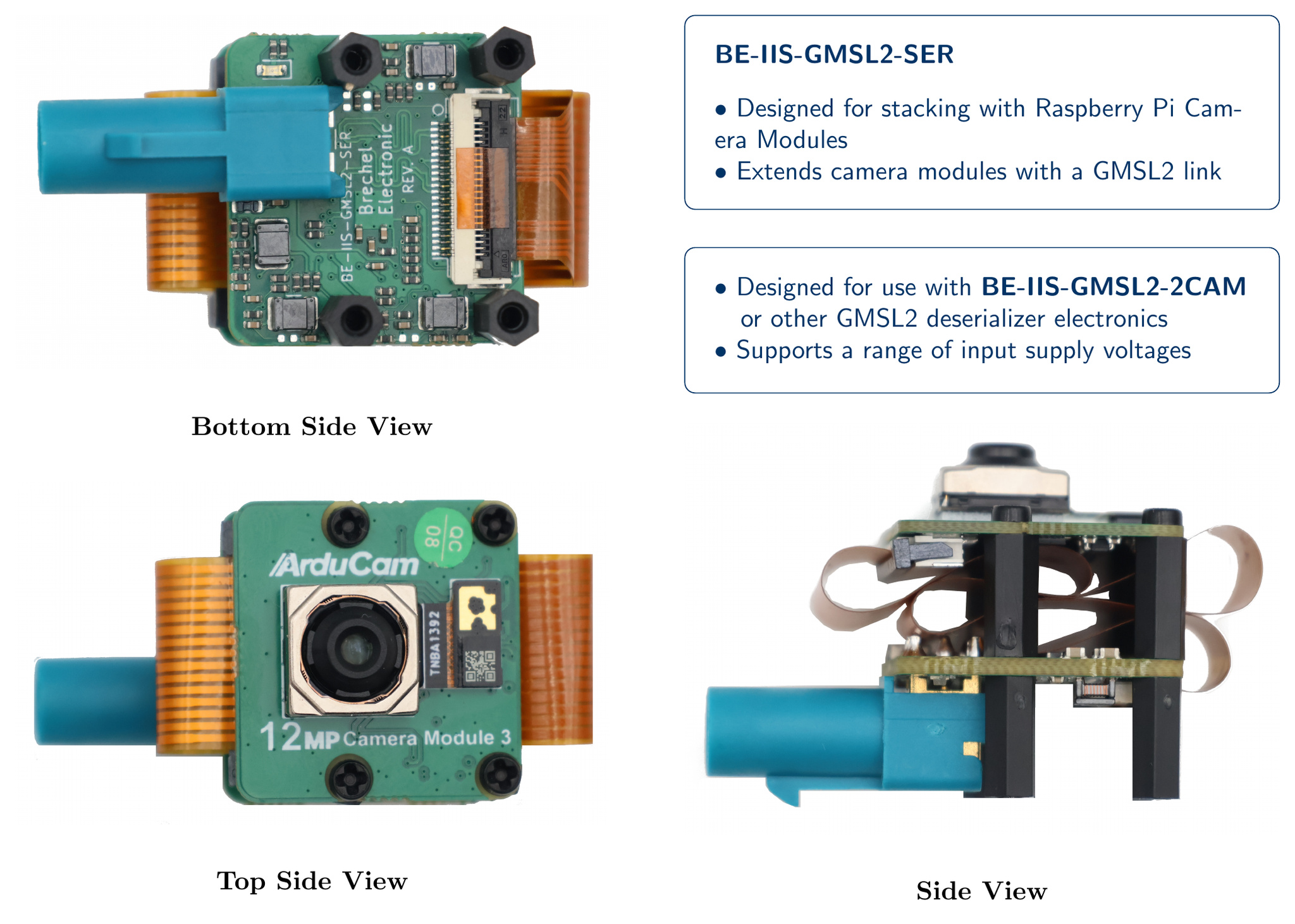

The BE-IIS-GMSL-SER connects directly to one compatible CSI-2 camera module through its 22-pin FFC/FPC connector. It serializes the CSI-2 video stream onto a GMSL2 coaxial link and routes I2C control, camera reset, and camera-enable signals between the camera and the remote deserializer.

The board is intended for use with a compatible GMSL2 deserializer, such as the BE-IIS-GMSL-CAM2, or another host-side GMSL2 receiver. Power may be provided through the coaxial cable using Power over Coax (PoC).

Applications

Remote CSI-2 camera integration
GMSL2 camera and cable evaluation
Automotive camera prototyping
Industrial vision systems
Raspberry Pi 5 camera-module extension
Camera-module bring-up and laboratory use
